Operation Principle
Three sets of stators and rotors are equipped in
working cavity. Driving shaft in working cavity is an
arm, electrical motor and the shaft in bearing
cabinet can be connected by spring coupling to
improve the operation quality of driving shaft. Seal
form can be selected in different conditions. It is fit
for m iddl e - l a rge s c a l e on - l i n e con ti n uou s
production or circulated treatment production
process.

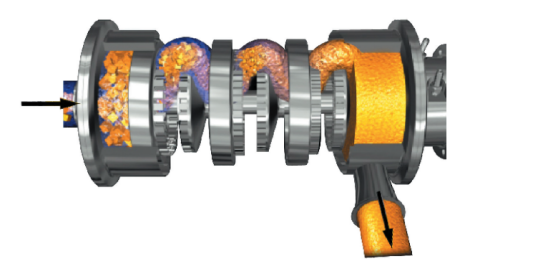

Principle of dynamics
1.Medium sucked in by strong axial suction force.
2.Single phase liquid, multi -phase liquid or
suspended particles are pumped in though
single-stage, double-stage or three-stage rotor
and stators.
3.No matter what medium property is, pump will
evenly shear all the liquid with high-intensity and
controllable force.
4.Shearing rate is constant, different sizes depends
on gear of rotor and stator and speed of rotor.
Optimized Combination Makes
The System Reach The Best State
There are equipments in different forms and combine
in optimization for different flow processes, to make
the system reach the best state. Common process
flows are as below:
Main Parameter
